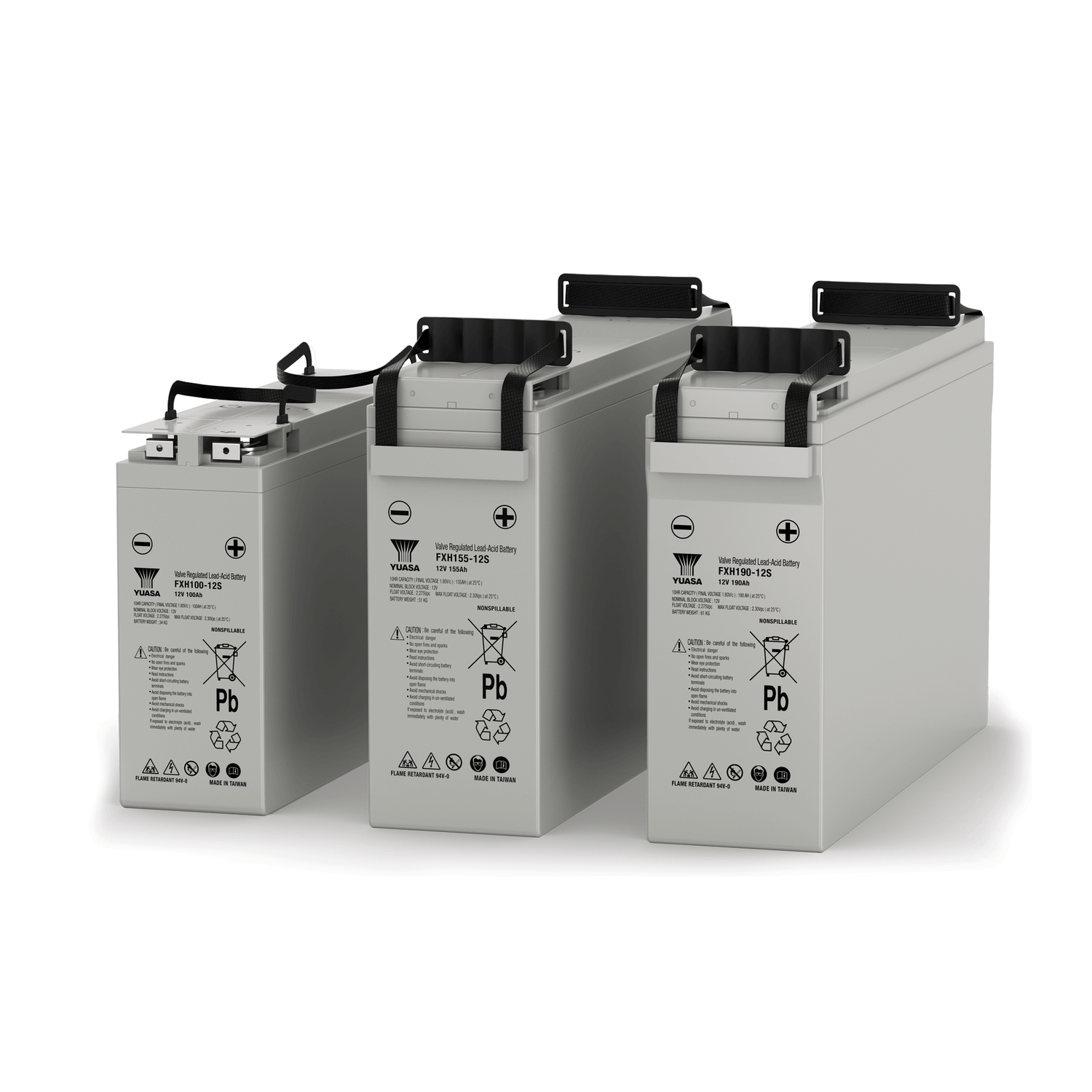

Yuasa FXH Range

The Yuasa FXH series is designed to provide the highest possible energy density, while offering a 10-year design life product. Incorporating valve regulated technology, Yuasa’s FXH is ideally suited for communication racks, with the front terminal connection providing quick and safe installation and maintenance.

Features:

  • Front terminal construction
  • Long service life: 10 years, @250℃
  • Flame retardant battery lid and container (UL94 V-0)
  • 01 Technical Specifications of Yuasa FXH Range
  • 02 Technical Features
  • Technical Specifications of Yuasa FXH Range
PDFBatteryNominal Voltage (V)Nominal Capacity C10 (AH)*Dimensions(mm±2)Weight (KG)
WidthDepthHeightOverall Height
pdf FXH100-12S 12 100Ah 106 395 289.5 289.5 34
pdf FXH155-12S 12 155Ah 124 556 289.5 295 51
pdf FXH190-12S 12 184Ah 125 556 317 317 60.5

Note

End voltage 1.80Vpc@25℃ : FXH100-12S, FXH155-12S
End voltage 1.85Vpc@25℃ : FXH190-12S

  • Technical Features

Technical Features

The Yuasa FXH series is designed to provide the highest possible energy density, while offering a 10-year design life product. Incorporating valve regulated technology, Yuasa’s FXH is ideally suited for communication racks, with the front terminal connection providing quick and safe installation and maintenance.

Features

  • Front terminal construction
  • Long service life: 10 years, @250℃
  • Flame retardant battery lid and container (UL94 V-0)
